4R Series Hand Pull Valve
5 Way 2 position Pneumatic air pilot Hand Draw Push Pull Valve

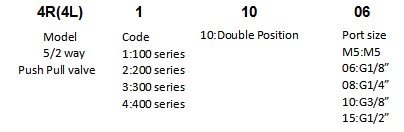

Order code
Symbol
Technical parameter
Model
4R110-M5
(4L110-M5)
4R110-06
(4L110-06)
4R210-06
(4L210-06)
4R210-08
(4L210-08)
4R310-08
(4L310-08)
4R310-10
(4L310-10)
4R410-15
(4L410-15)
Fluid
Air
Acting
Manual control direct acting type
Valve type
5/2 way Push Pull Solenoid Valve
Orifice size
5.5mm2
12mm2
14mm2
16mm2
25mm2
30mm2
50mm2
Lubrication
No required
Port size
M5
G1/8”
G1/4”
G3/8”
G1/2”
Protective class
IP65
Pressure range
0-0.8MPa
Proof pressure
1.2MPa
Material of body
Aluminum Alloy
Temperature
-20℃~60℃

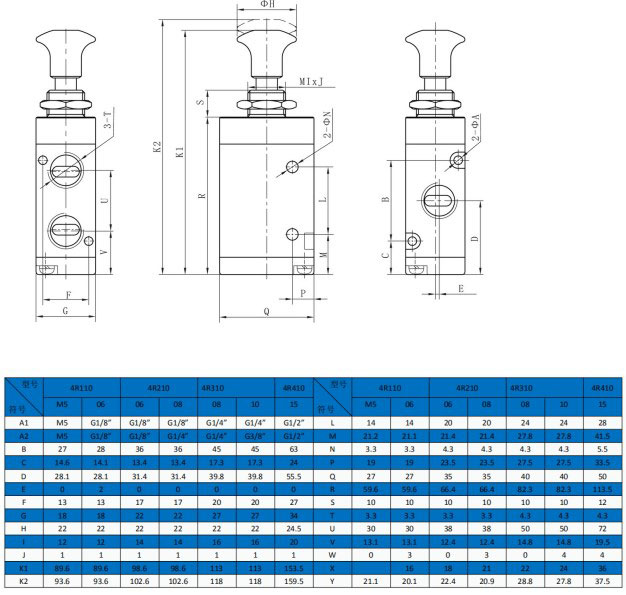

Dimension
Feature
Aluminum alloy Pneumatic Manual directional Hand operated pull valve 3R/4R series Push pull valve Mechanical valve is manual operation, smooth action, accurate and reliable positioning;
Sliding column structure, good sealing, small volume, light weight, easy disassembly;
Hand draw valve is panel installation, easy to install.
