K23JC3-L6 mechanical reversing valve
K23JC3-L6 Pneumatic 3/2 Way roller lever paper cup machine Mechanical Reversing Valve
Order code
Symbol
Techanical parameter
Model
K23JC3-L6
K23JC3-L8
Diameter
6mm
8mm
Media
Compressed Air
effective area
10mm2
12mm2
Port size
In=out=exhaust=G1/4”
In=out=exhaust=G3/8”
leakage
≤50cm3/min
Pressure range
0-0.8MPa
Temperature
5-50℃
Durability
≥200 million times

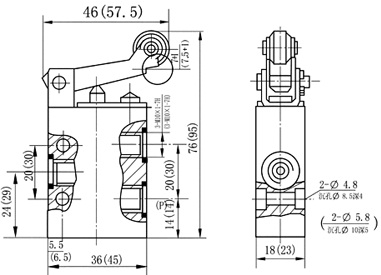

Dimension
Feature
.Roller mechanical valve is an automatic component operated by pressure oil. It is controlled by pressure oil of pressure valve. It is usually used in combination with solenoid pressure valve.
. High cycle life.
.It can be divided into direct type and pilot type.
.K23JC3 Roller mechanical control valve can be used for Paper cup machine reversing valve
