PX series pneumatic fittings

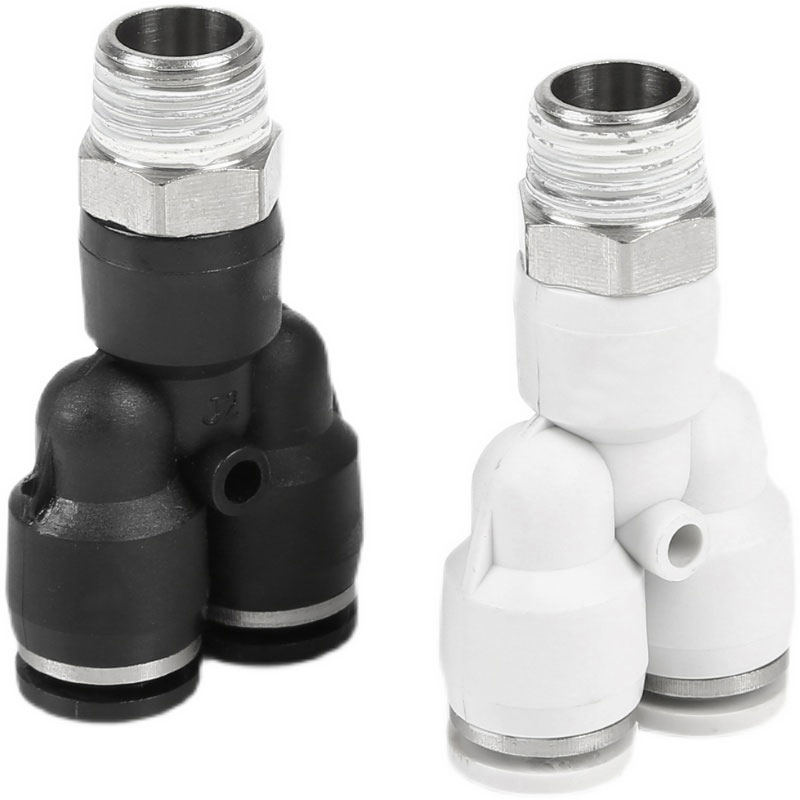

PX series Y type Tee Coupling Plastic Three way Quick Connect
Order code
Technical parameter
Model
PX4-M5
PX4-01
PX4-02
PX4-03
PX6-M5
PX6-01
PX6-02
PX6-03
PX6-04
PX8-M5
PX8-01
PX8-02
PX8-03
PX8-04
PX10-01
PX10-02
PX10-03
PX10-04
PX12-01
PX12-02
PX12-03
PX12-04
PX14-02
PX14-03
PX14-04
PX16-02
PX16-03
PX16-04
PX16-06
Fluid
Air,Water
Max. Pressure
1.32Mpa(13.5kgf/cm2)
Pressure range
Normal pressure
0~0.9Mpa(0~9.2kgf/cm2)
Low pressure
-99.99~0Mpa(-750~0mmHg)
Temperature
0℃~60℃
Applicable tube
PU/Nylon tube
Thread size
M5,1/8”,1/4”,3/8”,1/2”
Material of body
Brass
Dimension
Inch Type
Metric Type

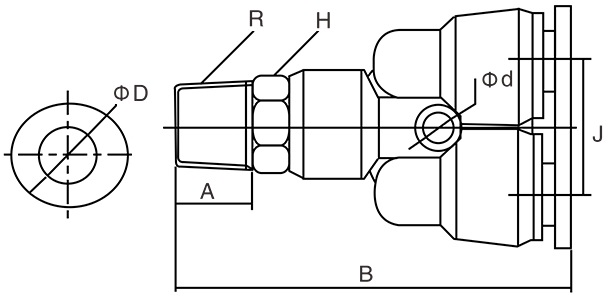

φD
R
A
B
H
J
φd
PX5/32-M5
PX4-M5
4
M5
4.5
43
10
11.5
2.5
PX5/32-01
PX4-01
4
R1/8
7
43
10
11.5
2.5
PX5/32-02
PX4-02
4
R1/4
9
46
14
11.5
2.5
PX1/4-M5
PX6-M5
6
M5
4.5
45.5
12
13.5
3.5
PX1/4-01
PX6-01
6
R1/8
6.5
46
12
13.5
3.5
PX1/4-02
PX6-02
6
R1/4
9
48.5
14
13.5
3.5
PX1/4-03
PX6-03
6
R3/8
10
48.5
17
13.5
3.5
PX1/4-04
PX6-04
6
R1/2
10
51
21
13.5
3.5
PX5/16-01
PX8-01
8
R1/8
8
51
14
16.5
4
PX5/16-02
PX8-02
8
R1/4
10
53
14
16.5
4
PX5/16-03
PX8-03
8
R3/8
10
53.5
17
16.5
4
PX5/16-04
PX8-04
8
R1/2
11
55
21
16.5
4
PX3/8-01
PX10-01
10
R1/8
8
56.5
17
19
4
PX3/8-02
PX10-02
10
R1/4
10
58.5
17
19
4
PX3/8-03
PX10-03
10
R3/8
10
58.5
21
19
4
PX3/8-04
PX10-04
10
R1/2
11
59.5
19
19
4
PX1/2-01
PX12-01
12
R1/8
8
62
19
21.5
4
PX1/2-02
PX12-02
12
R1/4
10
64
19
21.5
4
PX1/2-03
PX12-03
12
R3/8
10
64
19
21.5
4
PX1/2-04
PX12-04
12
R1/2
11
65.5
21
21.5
4
PX14-03
14
R3/8
12
64
24
23.5
4
PX14-04
14
R1/2
15
67
24
23.5
4
PX16-03
16
R3/8
12
75.5
24
27
4
PX16-04
16
R1/2
13
78.5
24
27
4
Feature
.PX Y type Tee Coupling Plastic Three way Quick Connect One Touch Air tube fittings is made by classical design,durable ai control design,fit for 4/6/8/10/12/16mm tube/hose
.Energy saving and environmental protection with big low rate,safety and precision
.Can work at the low pressure,smartness for on and off,good seal performance
.Single action and double action types for your selection
.Widely used in the food,machine,industry,abstention,Manufacturing,printing and other area
