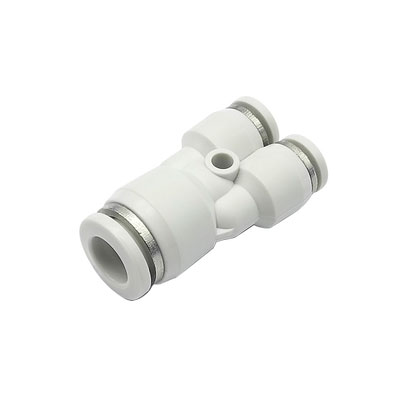

PW series pneumatic fittings
3 way reducing Y type Tube-to-Tube Adaptor Pneumatic Airtube Pipe Fittings
Order code
Technical parameter
Model
PW6-4
PW8-4
PW8-6
PW10-6
PW10-8
PW12-8
PW12-10
Fluid
Air
Max. Pressure
0-1.0Mpa
Temperature
0℃~60℃
Applicable tube
PU /Nylon tube
Outer diameter of Tube
4mm/6mm/8mm/10mm/12mm/14mm/16mm

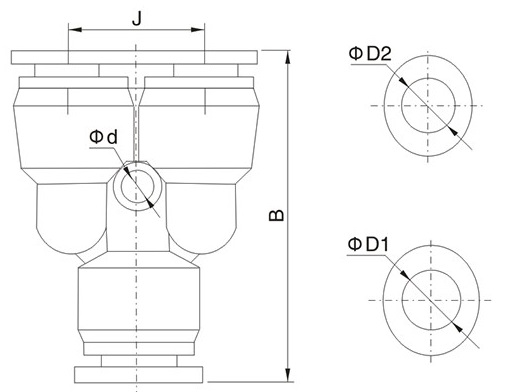

Dimension
Inch Type
Metric Type
ΦD1
ΦD2
B
J
φd
PW1/4-5/32
PW6-4
6
4
38.5
13
3.5
PW5/16-5/32
PW8-4
8
4
42
16
4
PW5/16-1/4
PW8-6
8
6
42.5
16
4
PW3/8-1/4
PW10-6
10
6
47.5
19
4
PW3/8-5/16
PW10-8
10
8
48
19
4
PW1/2-5/16
PW12-8
12
8
53
21
4
PW1/2-3/8
PW12-10
12
10
54
21
4
Feature
.Union PY Tee Connector Pneumatic Quick Connect Pipe Tube Fitting is high Strength, Wear Resistance, Corrosion Resistance, High Density, Not Easy to Burst.
.white plastic pneumatic fittings is Sturdy and Durable and Has a Long Service Life.
. Easy Installation and Disassembly, Good Sealing Performance.
.Y tee union tube fittings Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.
. You Can Easily Insert or Pull out the Trachea Without Any Tools.
